Especificaciones

N.? de n?cleos de CPU: 4
N.? de subprocesos: 4
N.? de n?cleos de GPU: 8
Reloj base: 3.6GHz
Reloj de aumento m?x. : Hasta 4.0GHz
Cach? L1 total: 384KB
Cach? L2 total: 2MB
Cach? L3 total: 4MB
Desbloqueados : S?
CMOS: 12nm FinFET
Paquete: AM4
Versi?n de PCI Express: PCIe? 3.0 x8
Soluci?n t?rmica: Wraith Stealth
Thermal Solution (MPK)
Wraith Stealth
TDP/TDP predeterminado
65W
cTDP
45-65W
Temp. m?x.
95?C

Memoria
Velocidad m?xima de memoria: Up to 2933MHz
Tipo de memoria: DDR4
Canales de memoria: 2

Especificaciones de gr?ficos
Frecuencia de gr?ficos
1250 MHz
Modelo de gr?ficos
Radeon? Vega 8 Graphics
Cant. de n?cleos de los gr?ficos
8

Funcionalidades principales
Display Port
S?
HDMI?
S?

Socket AMD AM4: Listo para procesadores de escritorio Ryzen™ 5000 Series / 4000 G-Series / 3000 Series.
Enfriamiento completo: Disipador de Chipset y Fan Xpert.
Conectividad ultrarrápida: Compatibilidad con M.2- Ethernet de 1 Gb- USB 3.2 Gen 2 tipo A.
5X Protection III: Múltiples protecciones de hardware para la protección integral del sistema.


CPU
AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors


Chipset
AMD A520


Memoria
2 x DIMM- Max. 64GB- DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.


Gráficos
1 x D-Sub
1 x HDMI 2.1(4K@60HZ)


Slots de Expansión
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1
Almacenamiento
Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors :
1 x M.2 Socket 3- with M Key- Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
AMD A520 Chipset :
4 x SATA 6Gb/s port(s)-
Support Raid 0- 1- 10


LAN
Realtek RTL8111H 1Gb Ethernet
ASUS LANGuard


Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC
Supports : Jack-detection- Multi-streaming- Front Panel Jack-retasking- up to 24-Bit/192kHz playback
Audio Feature :
Audio Shielding
Dedicated audio PCB layers
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.


Puertos USB
Rear USB Port ( Total 6 )
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
2 x USB 2.0 port(s)(2 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)


Software
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode


ASUS Special Features
ASUS 5X PROTECTION III
ASUS DIGI+ VRM
ASUS LANGuard
ASUS Overvoltage Protection
ASUS SafeSlot Core
ASUS Stainless-Steel Back I/O
ASUS Q-Design
ASUS Q-DIMM
ASUS Q-Slot
ASUS Thermal Solution
Aluminum heatsink design


Puertos E/S Traseros
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)


Puertos E/S Internos
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key- type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector


Accessorios
User´s manual
1 x ACC Express Activation Key Card
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)


BIOS
256 Mb Flash ROM- UEFI AMI BIOS


Capacidad de gestión
WOL by PME- PXE


Sistema Operativo
Windows® 10 64-bit


Factor de forma
mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

Speed - DDR4-3200
Warranty - Limited Lifetime
CAS latency - 22
DRAM family - Crucial
Density - 8GB
Brand - Crucial
Module type - UDIMM
Extended timings - 22-22-22
Technology - DDR4
Voltage - 1.2V
PC speed - PC4-25600
Kit Qty - 1
Specs - DDR4 PC4-25600 • CL=22 • Unbuffered • NON-ECC • DDR4-3200 • 1.2V • 1024Meg x 64 •
DIMM type - Unbuffered

Interface: 2.5? SATA III (6Gb-s)
Performance: sequential read up to 550MB-s
Operating Temperature: 0?C to 70?C (32?F to 158?F)
Storage Temperature: -40?C to 85?C (-40?F to 185?F)
Dimension (L x W x H): 69.85mm x 100.2mm x 7mm - 2.75? x 3.94? x 0.28?
Weight: 34g
Shock Resistant: 1500 G duration 0.5ms Half Sine Wave
Vibration Resistant: 7~800Hz 3.08Grm 20G 1 Oct-min 30min-axis(XYZ)
TBW: 168TB
DWPD: 0.32

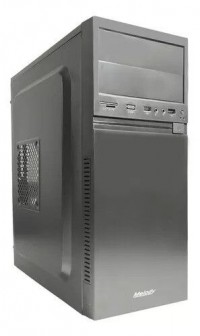

GABINETE MELODY MKG550-11 C/TECLADO/MOUSE/PARLANTE Y FUENTE 550W

Material: Aluminio
Colores: Negro
Soporte placas madre: M-ATX- M-ITX- ATX
Tipo de fuente admitida: ATX
Incluye fuente: Si
Potencia de la fuente: 550W
Ubicación de la fuente: Superior
Incluye periféricos: Si (Teclado- mouse y parlantes)
Puertos:
USB 2.0 Frontal: 2
Audio HD frontal: Sí
Lector de tarjetas SD: Si
Unidades 2.5'' soportadas: 1
Unidades 3.5'' soportadas: 1
Coolers Fan de 120mm soportados: 4
Dimensiones: 188mm ancho x 410mm alto x 390mm prof.
