Conozca el futuro de la informática con nuestros módulos de memoria inspirados en Telekinesis- que ofrecen velocidad y capacidad de respuesta inigualables- haciendo que su computadora se sienta como una extensión de su mente.

La memoria DDR4 (Double Data Rate 4) es un estándar de RAM ampliamente adoptado- conocido por su equilibrio entre velocidad- eficiencia y capacidad. Diseñada para ser compatible con una amplia gama de dispositivos- incluyendo computadoras de escritorio- portátiles- servidores y sistemas integrados- la DDR4 es compatible con la mayoría de los chipsets y procesadores modernos de fabricantes líderes como Intel y AMD. Su amplia adopción en el mercado garantiza una integración perfecta tanto en nuevas versiones como en actualizaciones- lo que la convierte en una opción confiable tanto para consumidores como para empresas.

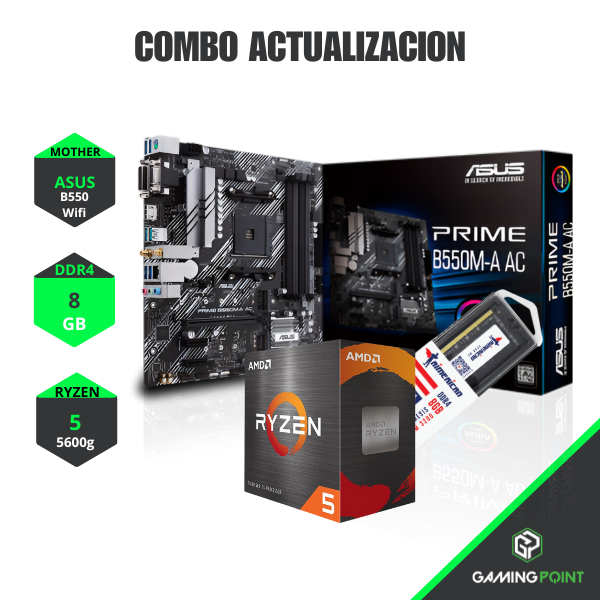

Tarjeta madre AMD AM4 mATX con PCIe 4.0- dual M.2- WiFi- HDMI- D-Sub- DVI- SATA 6 Gbps- puertos USB 3.2 Gen 2 e iluminaci?n Aura Sync RGB

- Socket AMD AM4: Listo para procesadores Ryzen? de escritorio Series 5000- 4000G y 3000.
- Refrigeraci?n completa: Disipador de VRM- disipador de PCH y Fan Xpert 2+.
- Conectividad ultrarr?pida: Dual M.2- PCIe 4.0- Wi-Fi 802.11ac- USB 3.2 Gen 2 tipo A.
- Aura Sync RGB: Efectos LED sincronizables en una amplia gama de equipos de PC compatibles- incluidas tiras RGB direccionables.

- CPU: AMD AM4 Socket for AMD Ryzen? 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors *
* Refer to www.asus.com for CPU support list

- Chipset: AMD B550

- Memoria:
4 x DIMM- Max. 128GB- DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)- and memory frequency support depends on the CPU types.

- Gr?ficos:
1 x D-Sub
1 x DVI-D
1 x HDMI 2.1(4K@60HZ)

- Slots de Expansi?n:
AMD Ryzen? 5000 Series/ 3000 Series Desktop Processors
1 x PCIe 4.0 x16 (x16 mode)
AMD Ryzen? 5000 G-Series/ 4000 G-Series Desktop Processors
1 x PCIe 3.0 x16 (x16 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1

- Almacenamiento:
Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
AMD Ryzen? 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_1 socket 3- with M Key- Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
AMD Ryzen? 5000 G-Series/ 4000 G-Series Desktop Processors:
1 x M.2_1 socket 3- with M Key- Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

- AMD B550 Chipset :
1 x M.2_2 socket 3- with M Key- Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
4 x SATA 6Gb/s port(s)-
Support Raid 0- 1- 10

- LAN:
Realtek RTL8111H 1Gb Ethernet
Datos de redes inl?mbricas
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports PCIe interface

- Bluetooth: Bluetooth? 5.0
- Audio: Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
- Supports : Jack-detection- Multi-streaming- Front Panel Jack-retasking- up to 24-Bit/192kHz playback
- Audio Feature :
- LED-illuminated design
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.

- Puertos USB:
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)

- Software Features:
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

- ASUS Special Features:
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
ASUS Lighting Control

- Puertos I/O Traseros:
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)
4 x USB 3.2 Gen 1 (blue) Type-A
3 x Audio jack(s)
1 x ASUS Wi-Fi Module

- Internal I/O:
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key- type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 3 with M key- type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x SPI TPM header
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
1 x Speaker connector

- Accessorios:
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
User manual
1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)

- BIOS: 256 Mb Flash ROM- UEFI AMI BIOS
- Capacidad de gesti?n: WOL by PXE
- Sistema Operativo: Windows? 10 64-bit
- Factor de forma: mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
